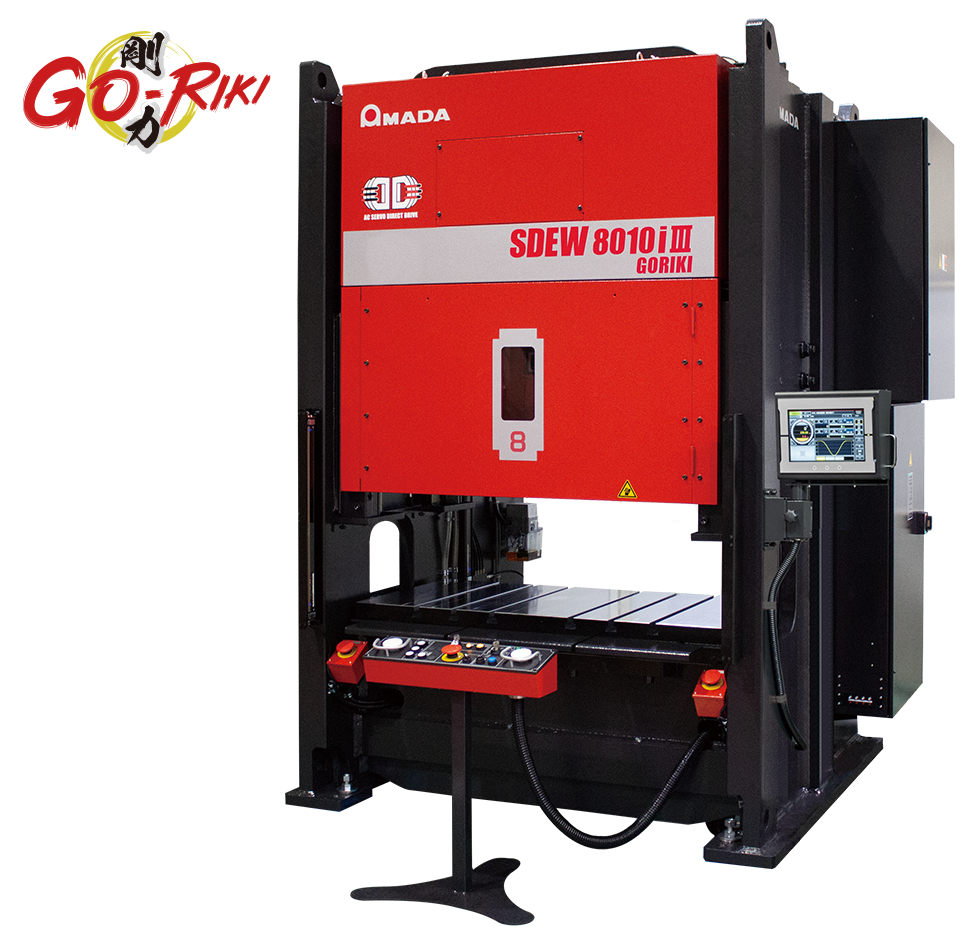

SDEW-i3 GORIKI 2-point / 800, 1600 kN
Digital AC Servo Press
"GORIKI," which in Japanese means increased rigidity "GO" and powerful "RIKI", is the name of our high-rigidity type stamping servo press machines.
Now we have added a double-crank specification to the GORIKI Series.
Features
- 1. High-rigidity frame structure for strengthening longitudinal rigidity
- We adopted a new solid column frame structure for our SDE-i3 GORIKI stamping servo press machines, with a chevron-shaped structure on the upper part of the front frame, and reduced cutout in the bed front plate. This chevron shape strengthens the longitudinal rigidity and reduces expansion of the frame during stamping. The reduction of frame movement during material breakthrough compared with the conventional models promotes high-precision, high-quality manufacturing.
-
- 2. High-rigidity guide structure for strengthening transverse rigidity

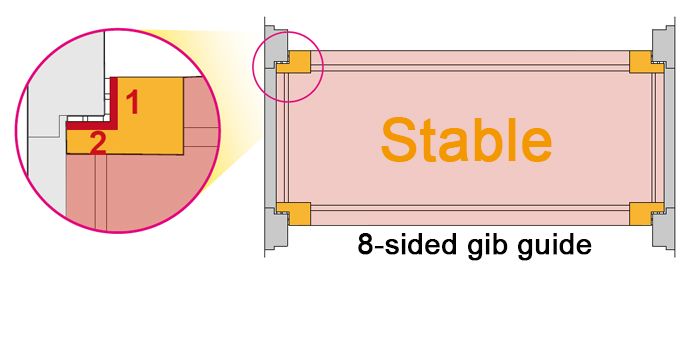

- The 8-sided gib guide on the slide part improves eccentric load resistance and maintains stable processing accuracy during production. It is especially effective for forming asymmetrical parts that require high eccentric load resistance.
-
- 3. Enlarged slide area
- For the first time in the GORIKI Series, a double-crank mechanism has been introduced. In addition to the high-rigidity frame structure, the enlargement of the slide area allows for the ability to install multi-step dies. This allows for a wide range of stamping needs, including high-value added forming of plate, forging and high-tensile strength steel plates.
-
Enlarged slide area
- 4. Diverse motion patterns
- The operator can load diverse motion patterns into the controls, creating a database of various processing patterns to select the optimum motion for each stamping type.
-
Screen for sample motions
- 5. Simple Selectable Motion Programming (SSMP)
- The new simple selectable motion programming, along with motion sample programming and motion editing, makes the i3 control significantly more simple and easy to program, even for less experienced users.
-
Screen for processing samples
- 6. ECO-friendly servo press machines with environmental consideration
- Our stamping servo press machines are ECO machines, or environmentally conscious products, which contribute to environmental impact reduction and working environment improvement.
- Power conservation: Sharp reduction of power consumption*
- Resource conservation: Reduction of lubricating oil consumption*
- Working environment: Significant reduction of stamping noise*
* Mechanial stamping press machine of the same class
- 7. Improved operability of the screen
- Three types of basic operation mode screens are provided for ease of use. Verifying the necessary information in each operation mode can be done quickly and easily.
-

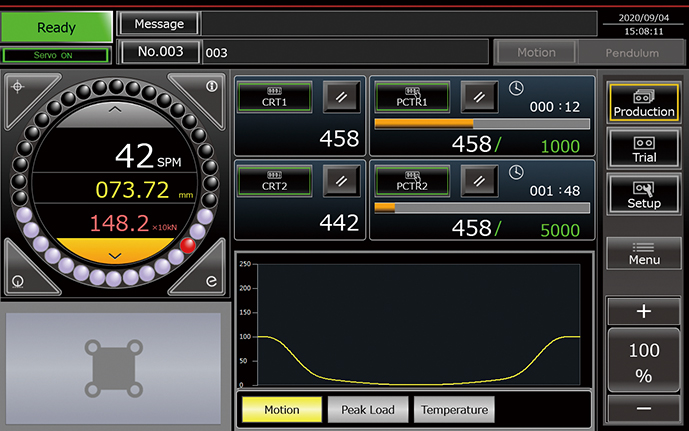

Production
Trial
Setup
Movies
Automation System for Progressive Stamping Press Production SDEW-8010i3 + ALFAS-03ARZ
Systemup Examples
Customers can upgrade their systems by selecting and combining the optimal peripheral equipment and other components.
Coil handling system
The combination in the Automation System for Progressive Stamping Press Production ALFAS Series is the best solution. In addition to setup and workload reduction by integrating the controls of the entire system, high-speed, high-precision feed, and high-speed pendulum motion of the stamping servo press machine results in stable processing.
SDEW-8010i3 + ALFAS-03ARZ
Specifications
| Machine name | High-rigidity frame SF (GORIKI) type |
Capacity kN |
Stroke length mm |
No. of strokes min-1 |
Die height mm |
 SDEW-8010i3 |
SF (GORIKI) | 800 | 100 | ~ 130 | 320 |
| SDEW-1613i3 |
SF (GORIKI) | 1600 | 130 | ~ 100 | 400 |
These specifications, machinery, equipment, and appearance are subject to change without notice for reason of improvement.
Please contact us for overseas specifications.
