AMADA PRESS SYSTEM
Automation System for Stamping Processing
NEW

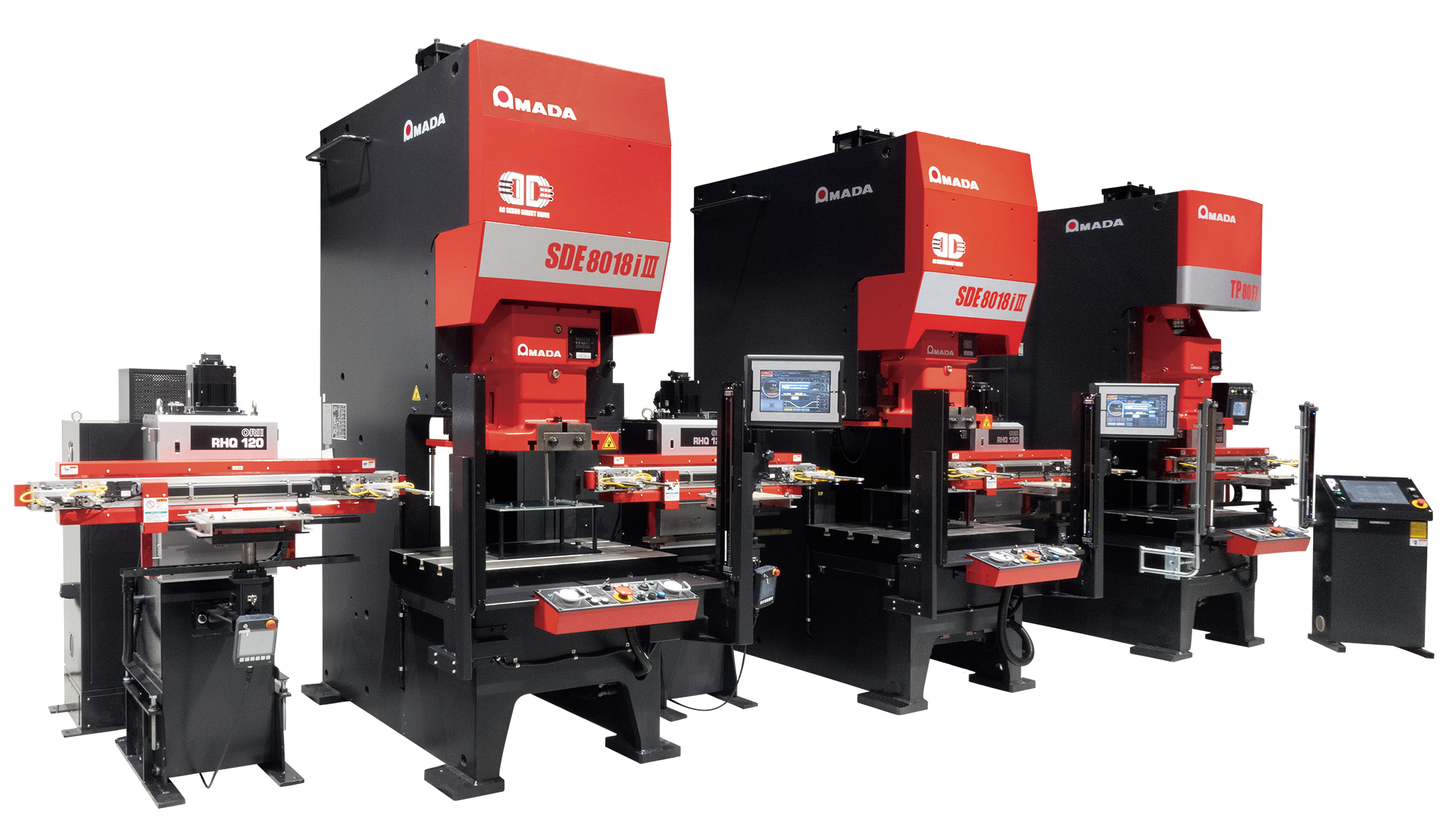

High-Speed Tandem Press Line System Servo-Drive Stamping Press (800 kN ~ ) + RHQ 2-axis servo robots
High-Speed Tandem Press Line System
A stamping press automation solution using a high-speed tandem line system that combines the SDE-i3 Series servo-driven stamping presses with the RHQ Series 2-axis servo robots.
WAVE synchronized control operation enables high-speed workpiece transportation between stamping press machines.
Features
- 1. Improved productivity through WAVE synchronized control operation
- High-Speed Tandem Press Line System, with the WAVE synchronized control operation, allows the workpiece to be transported while overlapping the operations of the stamping press machines and the transfer robots. This minimizes processing time, making it possible to improve production time.
- 2. Improved operability with line controller
- The line controller centrally manages the operation information of the robots and stamping presses, which greatly improves operability.
- 3. One-touch hand attachment/detachment mechanism as standard equipment
- Unlike the conventional bolt fixing, it can now be replaced without tools at the touch of a button, significantly reducing setup time and labor.
-
Hand exchange
- 4. ECO-friendly servo press machines with environmental consideration
- Our stamping servo press machines are ECO machines, or environmentally conscious products, which contribute to environmental impact reduction and working environment improvement.
- Power conservation: Sharp reduction of power consumption*
- Resource conservation: Reduction of lubricating oil consumption*
- Working environment: Significant reduction of stamping noise*
* Mechanial stamping press machine of the same class
Movies
High-Speed Tandem Press Line System SDE-3030i3 & RHQ-120
Introduction of the High-Speed Tandem Press Line System
Specifications
| Machine name | Details | |
|---|---|---|
| High-Speed Tandem Press Line System | Applicable presses | "i3" control-mounted stamping servo press |
| Applicable robots | 2-axis servo robots RHQ Series | |
| Workpiece holding method | Vacuum, electromagnet | |
| Maximum carrying mass | 4 x 2 kg (Total mass including hand and workpiece) | |
| Maximum number of connections servo press/robot | Please contact us. | |
Related products
These specifications, machinery, equipment, and appearance are subject to change without notice for reason of improvement.
Please contact us for overseas specifications.
