ALFAS Servo-Drive Stamping Press (800 - 6000 kN) + ALFAS-03ARZ-LS NC S-Curve Loop Straightener and High-Speed NC Roll Feeder

Automation System for Progressive Stamping Press Production
i3 Series + ALFAS-03ARZ-LS

A servo-driven stamping press and S-loop straightener-feeder have been combined.
The use of an S-shaped loop type allows for line speed tracking at high-speed.

Safety guide (Press Machine)

Features

1. Improved operability through integrating operation screen and controls: One control system unites the individual operation controls of the stamping press machine and the straightener-feeder, which has greatly improved operability.

2. High line-speed max. 90 m/min: Adopting an S-shaped loop and creating a straight line in the feeding direction from loop R to the feeder, stable high-speed feeding is possible with less vibration and resistance even during high acceleration or deceleration feeding.

3. Easy-to-use 3-mode operation screens for feeder: In the pursuit of ease of use, we designed three basic screens for the feeder. With these, the operator can access and operate with all necessary information quickly and easily in each mode.; Setting

Setup

Operation

4. Stable processing with Loop R Adjustment Mechanism optimized for stock thickness: Equipped with an adjustment mechanism that allows the entire lower part of the S-shaped portion to move up and down to achieve the optimal loop R radius according to the stock thickness. Since it is a top and bottom screw type, fine adjustment is possible. Optimizing the loop R prevents the loop from sagging and suppresses severe loop shaking during feeder high acceleration/deceleration feeding. Stable feeding is possible with less shaking and resistance.

5. ECO-friendly servo press machines with environmental consideration

Our stamping servo press machines are ECO machines, or environmentally conscious products, which contribute to environmental impact reduction and working environment improvement.

Power conservation: Sharp reduction of power consumption*

Resource conservation: Reduction of lubricating oil consumption*

Working environment: Significant reduction of stamping noise*
* Mechanial stamping press machine of the same class

It visualises power consumption on the Eco-monitor screen.

Eco-monitor screen

Movies

Automation System for Progressive Stamping Press Production SDEW-1613i3 + ALFAS-03ARZ-LS

Specifications

System Example

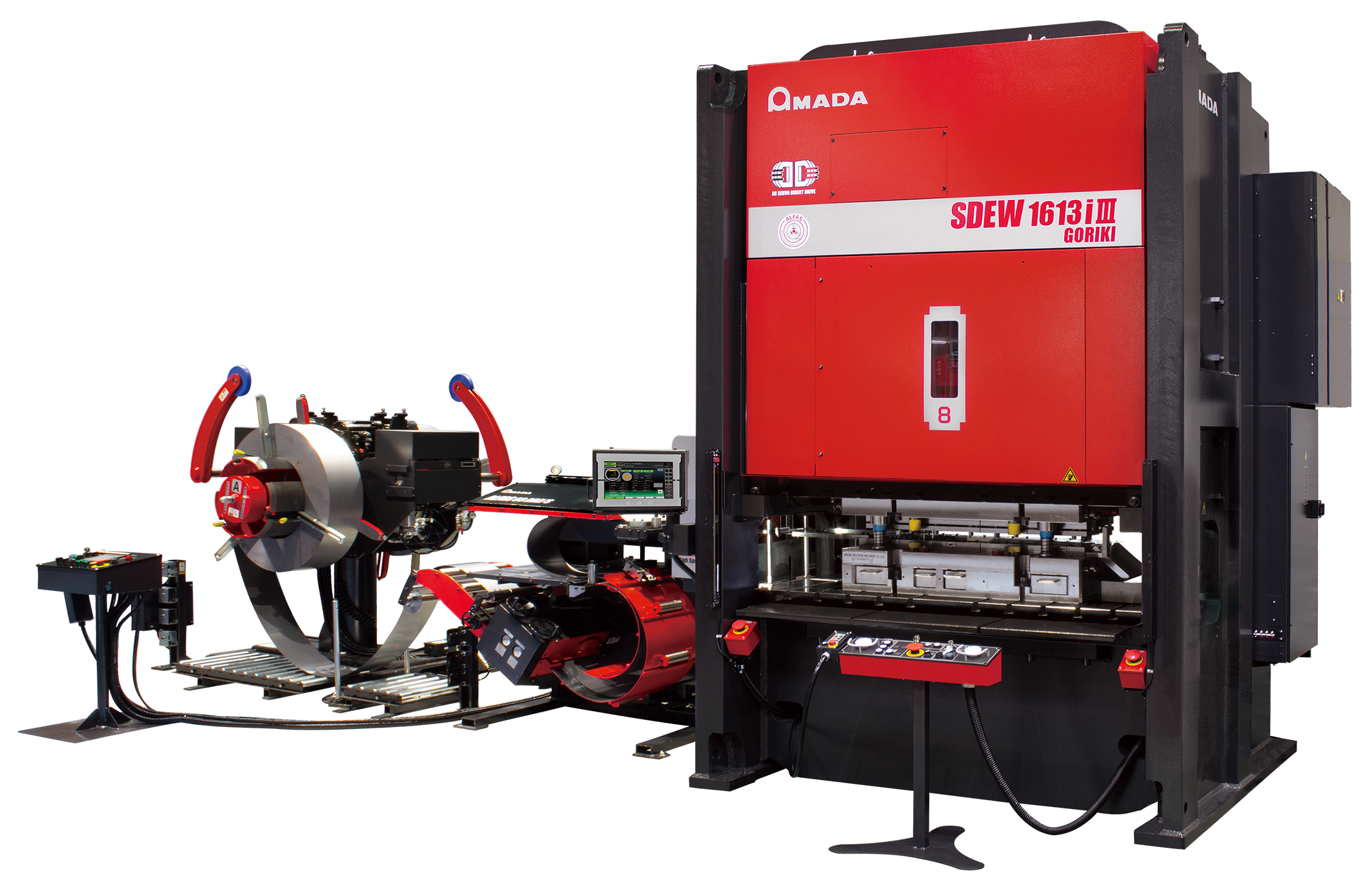

SDEW-1613i3 + ALFAS-03ARZ-LS

Machine name	Details
Whole system	Dimensions (W x H x D)	7330 x 3477 x 3200 mm
Servo-Drive Stamping Press SDEW-1613i3 GORIKI	Capacity	1600 kN
	No. of strokes	~ 100 min^-1
	Stroke length	130 mm
	Die height	580 mm
NC S-Curve Loop Straightener and High-Speed NC Roll Feeder ALFAS-03ARZ-LS	Stock width	50 ~ 300 mm
	Stock thickness	0.3 ~ 0.5 mm
	Max coil mass	1500 kg
	Max coil O.D.	ø1200 mm
	Coil I.D.	ø508 mm
	Line speed	~ 90 m/min
	Feed speed	~ 6.0 m/sec
	Number of work roll (up / down)	3 / 3 pcs.
	Mandrel expansion type	Pneumatic
