ALFAS Servo-Drive Stamping Presses (800 - 6000 kN) + ALFAS-04HF NC Straightener-Feeder
Automation System for Progressive Stamping Press Production
i3 Series + ALFAS-04HF
Combining a servo-drive stamping press and a NC straightener-feeder.
Adopting the ECO & SILENT Release Mechanism significantly reduces air consumption while achieving high productivity and high quality processing.
Features
- 1. Improved operability through integrating operation screen and controls
- One control system unites the individual operation controls of the stamping press machine and the roll feeder, which has greatly improved operability.
- 2. Significantly reduced air consumption with the latest ECO & SILENT Release Mechanism
- By reducing air consumption, CO2 emissions can be reduced by up to 70% and less movement during release also reduces noise. Additionally, release tracking performance has been improved by up to 20%.
- 3. Easy-to-use 3-mode operation screens for straightener-feeder
- In the pursuit of ease of use, we designed three basic screens for the straightener-feeder. With these, the operator can access and operate with all necessary information quickly and easily in each mode.
-
Setting
Setup
Operation
- 4. Analog loop control for improved quality and labor-saving
- Simple analog loop control enables uncoilers to continually rotate at a constant speed during auto operation, allowing stabilized behavior and preventing loosening. This reduces material scratches during loop formation, leading to better product quality.
-
Left: with analog loop control Right: without analogloop control
- 5. ECO-friendly servo press machines with environmental consideration
- Our stamping servo press machines are ECO machines, or environmentally conscious products, which contribute to environmental impact reduction and working environment improvement.
- Power conservation: Sharp reduction of power consumption*
- Resource conservation: Reduction of lubricating oil consumption*
- Working environment: Significant reduction of stamping noise*
* Mechanial stamping press machine of the same class
Movies
Automation System for Progressive Stamping Press Production SDE-2017i3 + ALFAS-04HF
Specifications
System Example

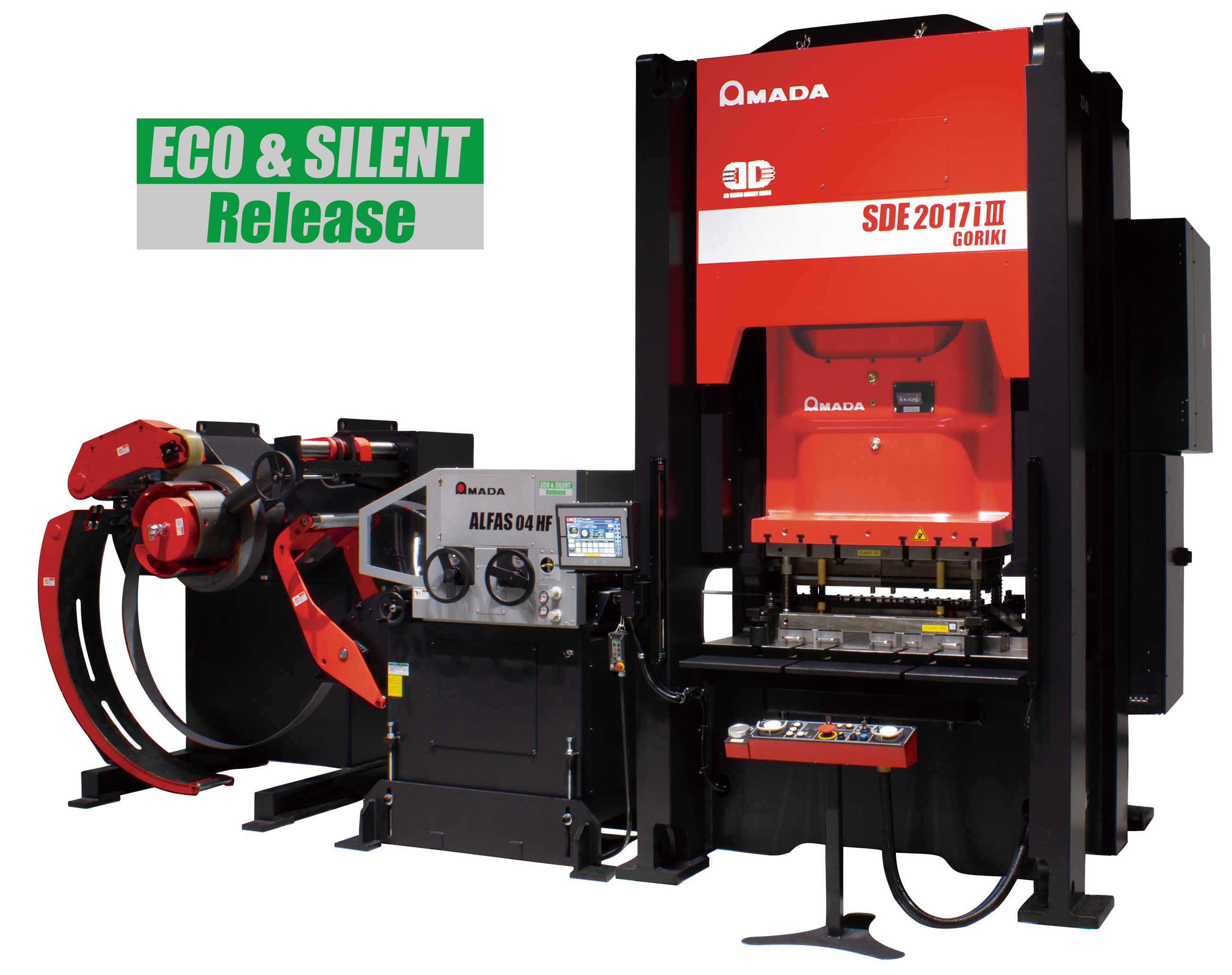

SDE-2017i3 + ALFAS-04HF
| Machine name | Details | |
|---|---|---|
| Whole system | Dimensions (W x H x D) | 6478 x 4485 x 2920 mm |
| Stamping servo press machine SDE-2017i3 GORIKI |
Capacity | 2000 kN |
| No. of strokes | ~ 75 min-1 | |
| Stroke length | 175 mm | |
| Die height | 415 mm | |
| NC Straightener-feeder ALFAS-04HF |
Stock width | 50 ~ 400 mm |
| Stock thickness | 0.3 ~ 4.5 mm | |
| Max coil mass | 3000 kg | |
| Max coil O.D. | ø1400 mm | |
| Coil I.D. | ø508 mm | |
| Max line speed | ~ 24 m/min | |
| Feed speed (Standard / High-speed) | 0.823 / 1.152 m/sec | |
| Number of work roll (up / down) | 4 / 4 pcs. | |
| Mandrel expansion type | Pneumatic | |
Related products
These specifications, machinery, equipment, and appearance are subject to change without notice for reason of improvement.
Please contact us for overseas specifications.
