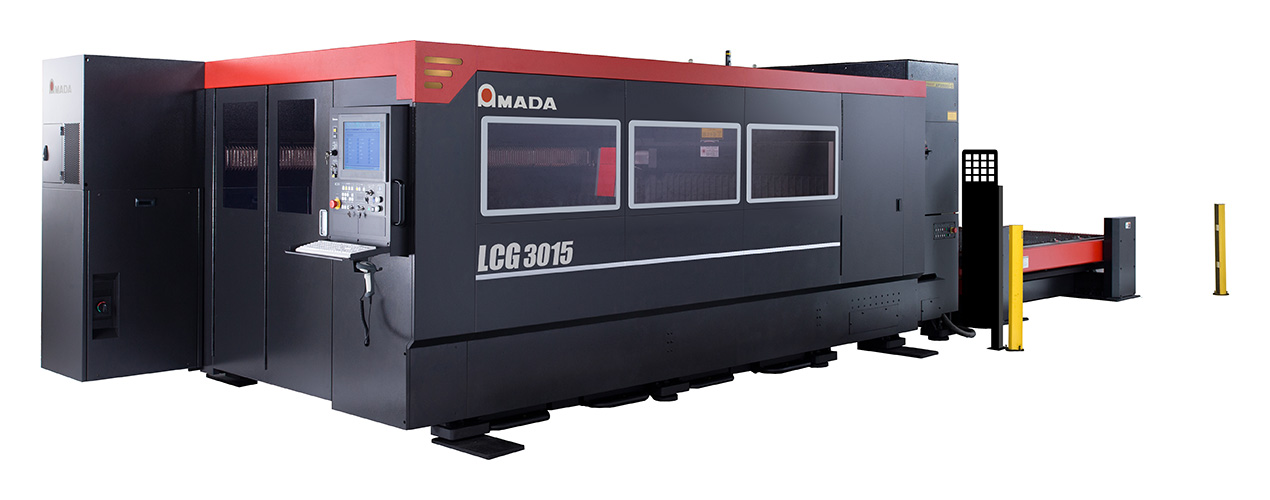

LCG-3015

Global standard CO2 laser machine

Pursuit of processing thin to medium materials with high speed and productivity

AMADA, a laser machine pioneer, has developed a new global standard laser machine.

The new laser machine adopts a low center of gravity carriage and a latest drive mechanism. These features combine with a high-torque motor and a helical rack system to achieve high-speed processing and cutting acceleration improvement.

Safety Guide (Laser cutting machine)


Features
■ Features(1) : High-speed processing of thin to medium materials
A low-center of gravity carriage and a latest drive mechanism are adopted to achieve the highest rapid feed rate and cutting speed of the class.
Rapid feed rate: 170 m/min for X and Y axes
■ Features(2) : High-quality processing
A new oscillator designed for processing thinner materials is installed to achieve high beam focusability and improve surface roughness.
■ Features(3) : Function enabling stable processing
ECO Cut is an energy-efficient, high-speed oxygen-assisted cutting process. Running cost is reduced by reducing processing time and assist gas consumption.
■ Features(4) : Latest functions installed
The machine is equipped with the function of automatically switching to a power save mode when it goes on standby.
The internal mirrors are increased in service life.

Movies

Material: SPH / Thickness: 6mm

[ Please click here for more detailed movie of the LCG-3015. (YouTube) ]


Production Samples

Material: SPC /
Thickness: 1.0mm

サンプル1


Specifications


Rapid feed rate
(m/min)
X:Y:Z

Maximum processing size
(mm)
X × Y × Z

Oscillator

Maximum sheet thickness
(mm)

LCG-3015

120:120:80

3070×1550×100

AF3500i-C
(rated output: 3.5kW)

SS:20
SUS:10
Aluminum:8


*For Japan domestic market.
