• Control of feed, cut, pitch, and coil outer diameter point, torsion, initial tension, arbor front/back, center slide, and bending assist tools.

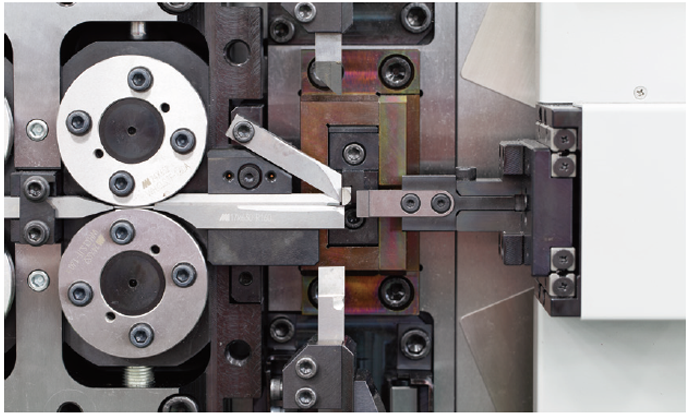

• Thanks to adopt a double roller, the load of feed pressure applied to the wire is suppressed.
• Rotary or straight cut can be easily switched by simply moving the eccentric pin.
• Utilizing the center slide to cut with the edge of the arbor and wire guide, it's possible to process at high-speed of shapes with straight parts on the spring end. 3D torsion spring processing is possible with using bender assist tool.

• The MEC original spring program MNO2 easily organizes important statistics about the machine, including program flow, operating status of each axis, inputs/outputs, jump, etc., as with our other spring machines.
• The program editing function has greatly evolved, and the navigation system function and touch screen make it easier to create programs and shorten the setup time.
• The program for number of coils allows change of the feed, pitch, outer diameter, and initial tension on the evolved pitch diagram screen. Making it easier to adjust the basic coils.
• In addition to the automatic spring length correction function based on the capacitance type length inspection, the multi-functional production control screen facilitates product management.

Enables the taper tilt to be managed with a value from 0 to 100. Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.

The operating status of machine can be monitored with mobile phones and computer, and regular maintenance with preventive maintenance functions can contribute to improved production efficiency.
