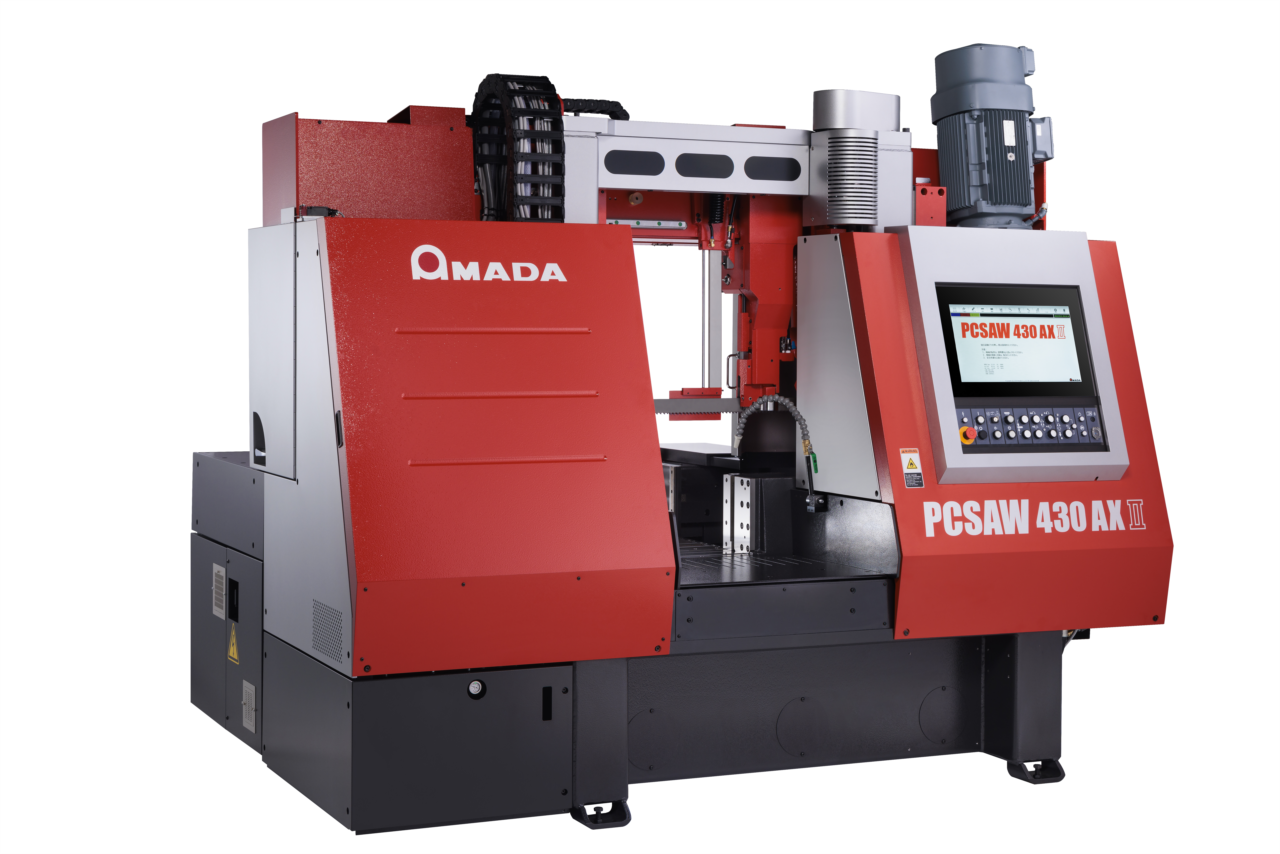

PCSAW-430AXⅡ
Pulse Cutting Band Saw Machine
New technology: Variable pulse cutting for faster & more stable performance!
Eco machine with an environmentally friendliness, energy saving design!
Evolved with a unique variable pulse cutting mechanism!
Even faster and more stable cutting has been achieved by significantly reducing cutting resistance.
In addition, power consumption has been greatly reduced compared to conventional machines.
This next-generation eco-machine features an energy saving design with a focus on environmental sustainability.
Features
- ■ Features(1)：Variable pulse cutting system 【Evolution】
- Variable pulse cutting controls the pulse frequency ,which was originally fixed, to an optimal value based on the material (type, shape and size), blade type, and cutting conditions.
-
- Significant reduction in cutting resistance
- Enables high-speed and stable cutting
- Energy saving achieved through reduced cutting time
Variable pulse cutting image
- ■ Features(2) : Energy saving and environmental impact reduction 【Environment】
- The use of an eco pump reduces power consumption and lower environmental impact.
-
- Standby power consumption reduced by approximately 50% (Idle stop supported).
- Processing power consumption reduced by approximately 10–20% (varies by material type).
The eco pump and high-speed cutting speed together significantly reduce power consumption.

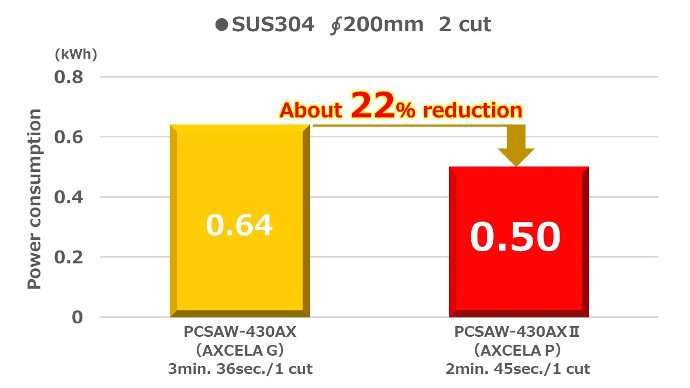

Power Consumption Comparison
- ■ Features(3) : Improved operability and precision【Easy】
- Work efficiency has been greatly improved thanks to the updated control panel
-
- Upgrade the control panel to 21 inches
- Intuitive operation with a touch panel
- Quick data input using on-screen keyboard
-
control panel
Screen keyboard
- ■ Features(4) : System upgrade【Efficiency】
-
- A diverse lineup of systems tailored to customer needs
- Significant improvement in productivity
- Solving workforce shortages
1 Shift model
2 Shift model
24-hour operation model
Specifications
| Model | PCSAW-430AXⅡ | |
|
Cutting capacity(mm) |
Round(Dia) | φ30～430 |
| Rectangle(WxH) | □30～□430 | |
| Blade size (WxTxL) (mm) |
54×1.6×6100 | |
| Blade speed（m/min） | 15～120（Inverter CVT） | |
| Moters(kW) | Saw blade | 11 |
| Hydraulic pump | 2.2 | |
| Coolant pump | 0.25 | |
| Wire brush | 0.2×2 | |
| Pulse cutting | 0.4×2 | |
| Feeding axis | 1.5 | |
| Saw head | 0.5 | |
| Power requirement(kVA) | 27 | |
| Vise | Rear vise | Feed stroke (500mm stroke) |
| Main vise | Fixed-type (sprit vise) | |
| Blade guide | Auto-adjustable blade guide | |
| Blade control | Up/Down | Automatic lift setting with quick approach mechanism |
| Cutting control | CNC-based automatic cutting setup | |
| Table hight (mm) | 700 | |
| Allowable loading mass on machine (kg) | 3000 | |
| Machine dimensions (WxLxH) (mm) |
2870×2113×2324 | |
| Machine mass (kg) | 4900 | |
Options
- Vise pressure control valve
- Vertical vise
- Signal light
- External chip conveyor
- Back gauge stopper
- Roller table
- RT conveyor
- Added QR code scanning functionality
*QR Code is a trandemark of DENSO WAVE INC.
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
