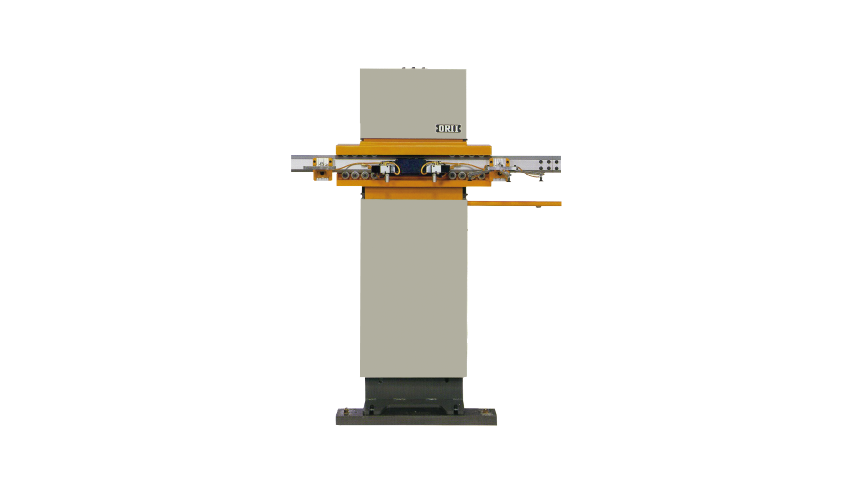

RYN-W Robot
High flexibility and the ultimate in space-saving design.
Our RYN-W robot system opens up new possibilities for the automation of multiple presses.
Features
- ■ Features(1) : High performance and space saving
-
Only Oriimec can provide a refined and simple structure that provides high performance, yet is easy to install, cost-efficient and compact. The drive unit is located between presses to make efficient use of space.
- ■ Features(2) : Extremely flexible line configurations
-
The drive unit can be installed anywhere in the line, enabling flexible line configurations to be constructed according to the conditions of the factory.
- ■ Features(3) : High operability and functionality
-
Oriimec’s user-first design philosophy shows in the independent and easy-to-use NC operation panel. The operation method and layout have been designed with functions and procedures in mind to enable easier and more reliable operation.
- ■ Features(4) : Assembly shared with the RY series.
-
All accessories are completely compatible with our best-selling RY series. This allows them to be freely shared, making this product a logical choice in terms of economic value and preparation.
Specifications
| Model | RYN110W | RYN150W | RYN220W | |
|---|---|---|---|---|
| Feed length | mm | ~ 1,250 | ~ 1,750 | ~ 2,200 |
| Vertical stroke | mm | ~ 60 | ~ 100 | ~ 100 |
| Cycle time *1 | sec | 1.7 ~ | 2.5 ~ | 3.3 ~ |
| Max workpiece weight *2 | kg | 3.0 | 4.0 | 8.0 |
| Repeatability | mm | ±0.3 | ||
| Workpiece pick up | - | Vacuum / Magnet | ||
| Weight | kg | 900 | 950 | 1200 |
*1 Rarely affected by workpiece form.
*2 The total weight of workpiece and finger.
These specifications, machinery, equipment, and appearance are subject to change without notice for reason of improvement.
Please contact us for overseas specifications.
