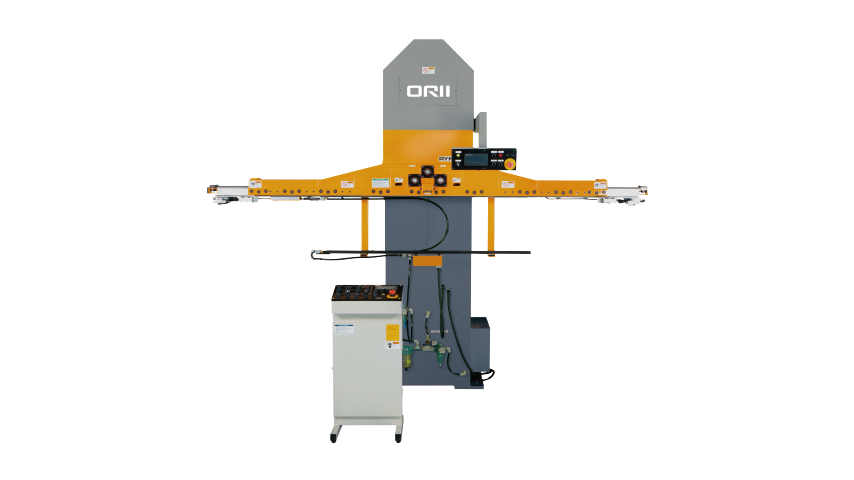

RYN Robot
This robot enables the transfer of large sized workpieces that cannot be transferred with RY robots.
Two variations are available: the RYN200S, which supports a feed length of up to 2,500 mm and a work weight of up to 8 kg, and the RYN300S, which supports a feed length of up to 3,000 mm and work weight of up to 16 kg.
An AC servo motor is used for smooth and highly accurate feeding.
Features
- ■ Features(1) : Use various functions to assemble efficient lines.
-
Combine peripheral components centered on the press and RYN robot. A destacker for separating work pieces one at a time and delivering them to the robot. Multiple functions can be included in a line for efficient operation, such as a turnover for turning work pieces over between processes and an unloader for unloading the work pieces. This enables lines to be assembled to meet various needs, further enhancing performance.
Specifications
| Model | RYN200S2 | RYN200L2 | RYN300S2 | RYN300L2 | |
|---|---|---|---|---|---|
| Feed Length （Always selected） |
mm | 1,800～2,500 | 2,501～3,000 | 2,501～3,000 | 3,001～3,500 |
| Vertical Stroke （Always selected） |
mm | 50～100 | |||
| Cycle Time ※1 | sec | 3.7～ | 4.4～ | ||
| Max.Workpiece Weight ※2 | kg | 8.0×2 | 16.0×2 | ||
| Repeatability | mm | ±0.3 | |||
| Workpiece pick up | - | Vacuum / Magnet | |||
| Weight | kg | 1,600 | 2,800 | ||
※1 Rarely affected by Workpiece form.
※2 The total weight of Workpiece and finger.
