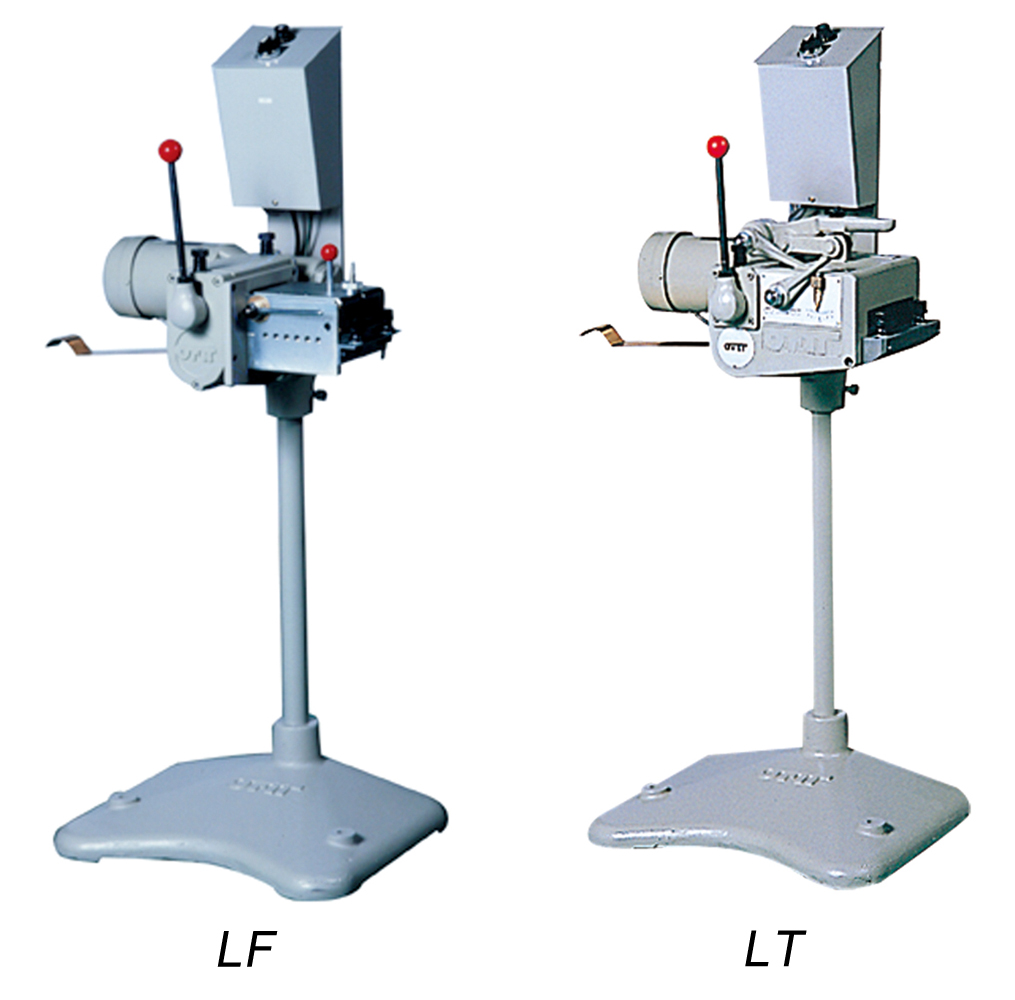

LF / LT Series
LF：COMPACT STRAIGHTENER （for thin stock ）
This compact type straightener with 11 work rolls was developed especially for thin stocks and is controlled by contact switch with auto loop sensor.
LT：COMPACT STRAIGHTENER
This is our bestselling machine in compact type straightener and is equipped with auto loop sensor which is the same as LF series. Adjustment of ON and OFF time is by a timer.
Specifications
| Model | LF-01 | LF-91 | LT-91 | LT-02 |
|---|---|---|---|---|
| Stock Width (mm) | 15～100 | 15～150 | 15～150 | 15～200 |
| Stock Thickness (mm) | 0.1～0.3 | 0.3～1.6 | ||
| Stock Thickness✕Stock Width (mm) | 0.3×100 | 0.3×150 | 1.6×150 | 1.2×200、 1.6×130 |
| Number of Work Rolls | 11 | 7 | ||
| Straightening Speed m/min | 50Hz:Standard14、High Speed18 60Hz:Standard17、High Speed22 |
|||
●The above lists indicate straightening performance of stocks which have yield stress of 245N/mm2(tensile strength of 392N/mm2).
●Specifications are subject to change for improvement without notice.
