AFK Series (w: 20 ~ 300 mm, t: 0.1 ~ 2.3 mm)

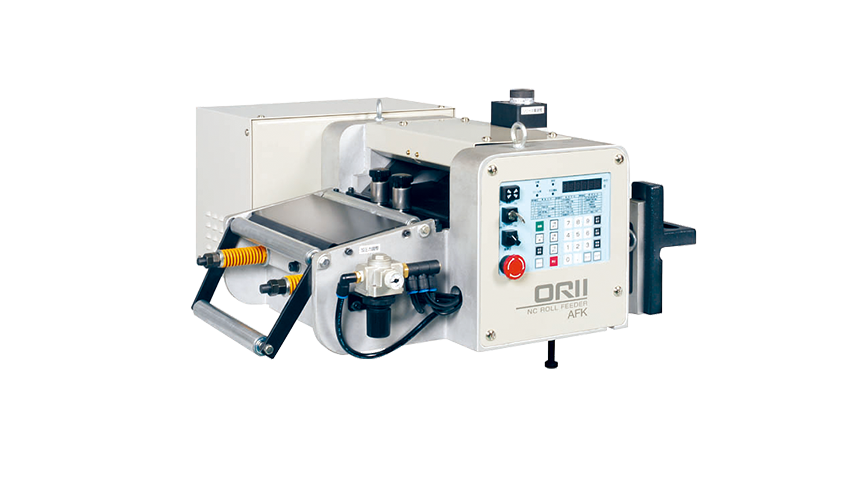

Featuring Oriimec’s original all-new G-Type CCS controller, the AFK roll feeder is designed for easy handling of small withe coils.
Outfitted with a solid aluminum body, this machine gives a high degree of rigidity to the finished product.
Installation is easy, with two T-bolts on bolster.
Features
- ■ Features(1) : Includes newly-designed G type CCS control
-
This product includes the cutting-edge G type CCS control, an even more sophisticated version of our popular F type CCS control. This enables the optimal assembly with peripheral devices such as reel stands, straighteners, and cutting machines. With a wide variety of functions, this is the ultimate compact NC feeder control unit.
- ■ Features(2) : Unique design with special care taken to provide peace of mind.
-
The motor has a brake to prevent coiled strips from falling out after the power supply is turned off, and an anti-vibration design is used to protect the machine and control panel from press vibrations.
- ■ Features(3) : High rigidity and simple adjustment of opening width
-
The integrated aluminum structure provides even greater rigidity, and this product can be easily attached to a bolster with two T-bolts. The opening width can also easily be adjusted by dial selection.
- ■ Features(4) : Dramatically improved specs
-
Functions added after the roll rift of the previous model have also been dramatically increased. The productivity has been increased from 150 to 200 operations per second.
Specifications
| Model | AFK02 | AFK03 | |
|---|---|---|---|
| Stock Thickness | mm | 0.1～2.3 | |
| Stock Width | mm | 20～200 | 20～300 |
| Stock Thickness×Stock Width | mm | 0.1～2.3×200 | 0.1～2.3×300 |
| Feed Length | mm | MAX. 9999.99 | |
| Roll Lift | spm | max. 200 | |
| Repeatability | mm | Within ±0.2 | |
| Pass Line | mm | 70 to 170 Above the Bolster | |
| Motor Power | kW | AC 0.4 | |
| Motor Power | v | 200/220 | |
| Feed Roll Pressurize | Air Cylinder + Spring | ||
| Roll Lift Mechanism | Air Cylinder | ||
| Entry Stock Side Guide | Manual Fixed Width Guide | ||
| Standard Equipments | End of Stock Detector | ||
NOTE: 1. The stock thickness x stock width is for cases where the loop length is 3720 mm and the loop height is 950 mm.
NOTE: 2. Cannot be used for up loops.
※Specifications are subject change improvement without notice.
