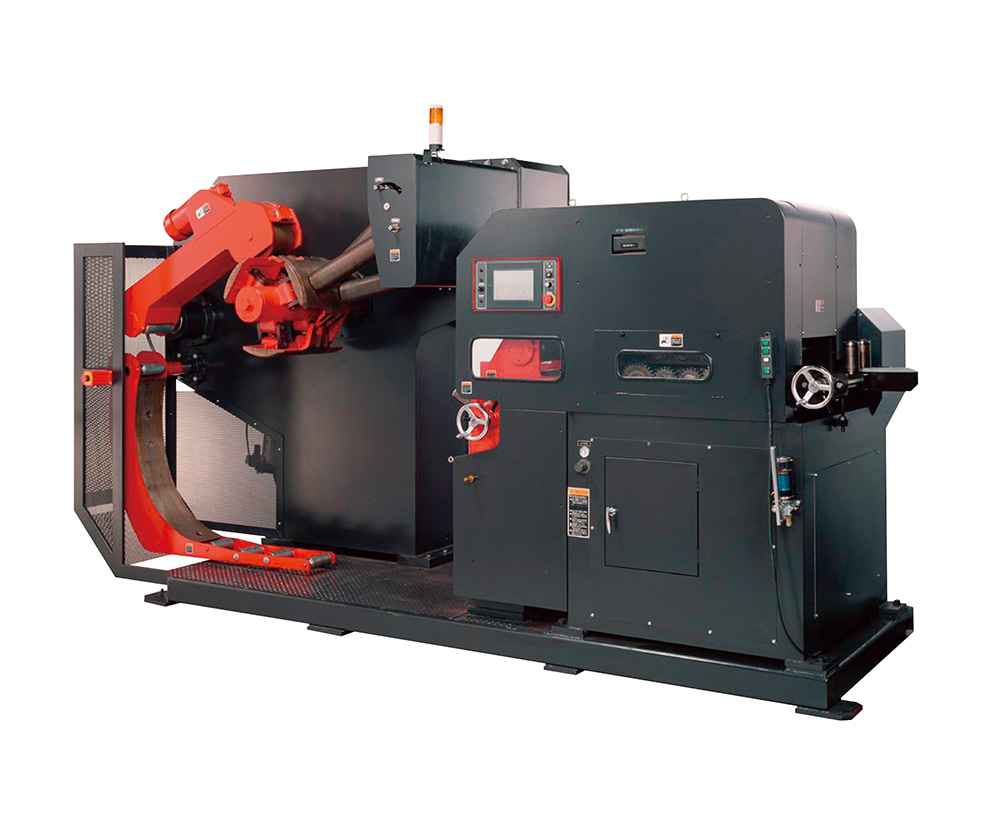

LFD Series Leveler feeder
Leveler feeder
Specifications
| Machine name |
Material width |
Max thickness |
Diameters of coil material |
Max load of coil |
|---|---|---|---|---|
|
LFD-300V2 |
30 ~ 300 |
0.4 ~ 3.2 |
ø508 / Max ø1200 |
1500 |
|
LFD-400V |
40 ~ 400 |
0.5 ~ 3.2 |
2000 |
|
|
LFD-500V |
50 ~ 500 |
0.5 ~ 3.2 |
2000 |
|
|
LFD-400T |
50 ~ 400 |
T：0.5 ~ 4.5 |
T: ø508 / Max ø1400 |
3000 |
|
LFD-500T |
50 ~ 500 |
|||
|
LFD-600T |
50 ~ 600 |
* with leveler open mechanism
These specifications, machinery, equipment, and appearance are subject to change without notice for reason of improvement.
Please contact us for overseas specifications.
