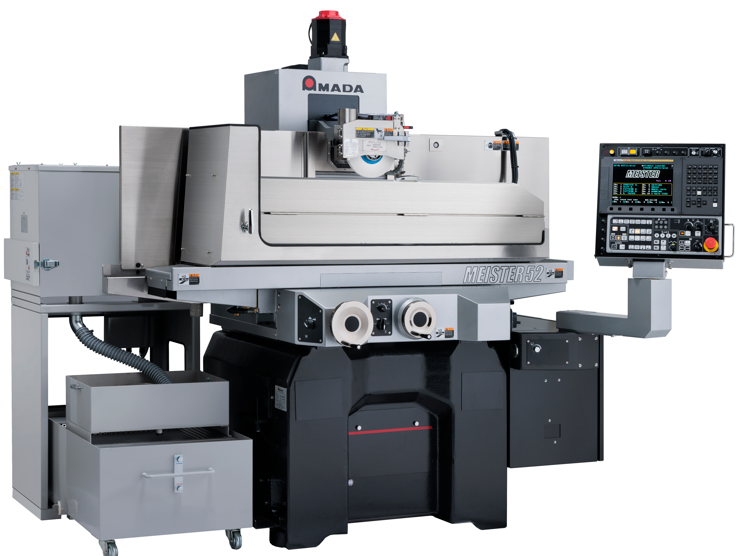

MEISTER-G3/V3
High Precision Forming Grinder
Over 1000 saddle type surface & form grinders have been delivered to customers. AMADA MACHINERY's grinding technology has developed and refined original software for user-friendly operation.
Features
- ■ Features(1) : High speed table reciprocation
-
- Our proprietary positioning scale and hydraulic servo system can achieve 250 min-1 high speed reciprocation and significantly increase grinding efficiency.
- ■ Features(2) : Optical linear scale for high accuracy positioning
-
- The vertical axis is accurately positioned by fully closed feedback using a linear scale of 0.05 μm resolution (optional for MEISTER-V3).
- ■ Features(3) : Full cover design insusceptible to thermal displacement
-
- The installed heat-insulating cover can cope with thermal symmetry structure and environmental change and assure work safety.
Specifications
|
Model |
MEISTER-G3 |
MEISTER-V3 |
|---|---|---|
|
NC control axis |
Simultaneous 2-axis + 1 axis |
|
|
Maximum chuck size (L x W x H) (mm) |
400 x 200 x 100 |
350 x 150 x 100 |
|
Travels (traverse/cross/vertical) (mm) |
600/250/400 |
500/200/400 |
|
Wheel spindle motor (kW) |
2.2 |
|
|
Wheel spindle grinding wheel size |
φ205 x 6.4 - 25 x φ31.75 |
φ205 x 15 x φ31.75 |
Options
- Centerless Cylinder Grinding Equipment CFG2-55
- Vertical Rotary Dresser VRD-125/VRD-125B
- Electromagnetic Chuck for Carbide Material SM-C1810
- Electromagnetic Chuck for Carbide Material SM-C1580
- R Dresser Over Machine MRD-180
- Twin Dresser TD-100
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
