SGLB
High Speed Steel Bi-metal Band Saw Blade
Best selling versatile blade capable of cutting steel materials ranging from structural steel to stainless steel.
Features

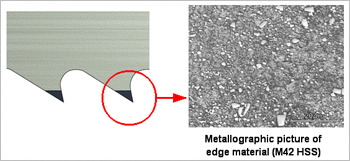

- ■ Feature(1) : Adoption of M42 cobalt high-speed steel
-
- ■ Feature(2) : Suitable for cutting solid materials ranging from general steel to difficult-to-cut materials
- ■ Feature(3) : Widest array of product lineups to cover all material shapes
Lineup of Products
|
Name |
SGLB |
|||||||||
|
Blade width (mm) |
Blade thickness (mm) |
Pitch |
||||||||
|
0.75/1 |
1.1/1.5 |
1.5/2 |
2/3 |
3/4 |
4/6 |
5/7 |
6/10 |
8/12 |
||
|
19 |
0.9 |
|
|
|
|
▲ |
● |
● |
▲ |
▲ |
|
27 |
0.9 |
|
|
|
● |
● |
● |
● |
● |
● |
|
1.1 |
|
|
|
|
● |
▲ |
|
|
|
|
|
34 |
1.1 |
|
● |
|
● |
● |
● |
● |
● |
▲ |
|
1.3 |
|
|
|
● |
● |
▲ |
|
|
|
|
|
41 |
1.3 |
|
● |
● |
●/WS▲ |
●/WS● |
● |
● |
|
|
|
54 |
1.3 |
|
|
|
● |
● |
▲ |
|
|
|
|
1.6 |
● |
● |
● |
●/WS▲ |
●/WS● |
● |
|
|
|
|
|
67 |
1.6 |
● |
● |
● |
●/WS● |
●/WS● |
▲ |
|
|
|
|
80 |
1.6 |
●/WS▲ |
● |
● |
|
|
|
|
|
|
● : Standard item ▲ : Special order required WS●：Wide set specification available WS▲：Wide set specification special order required
* The WS (Wide set) type blade is a special saw blade with a measure against pinching. Using of the WS type blade for cutting the material where no pinching would occur may shorten the service life of the blade.
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
