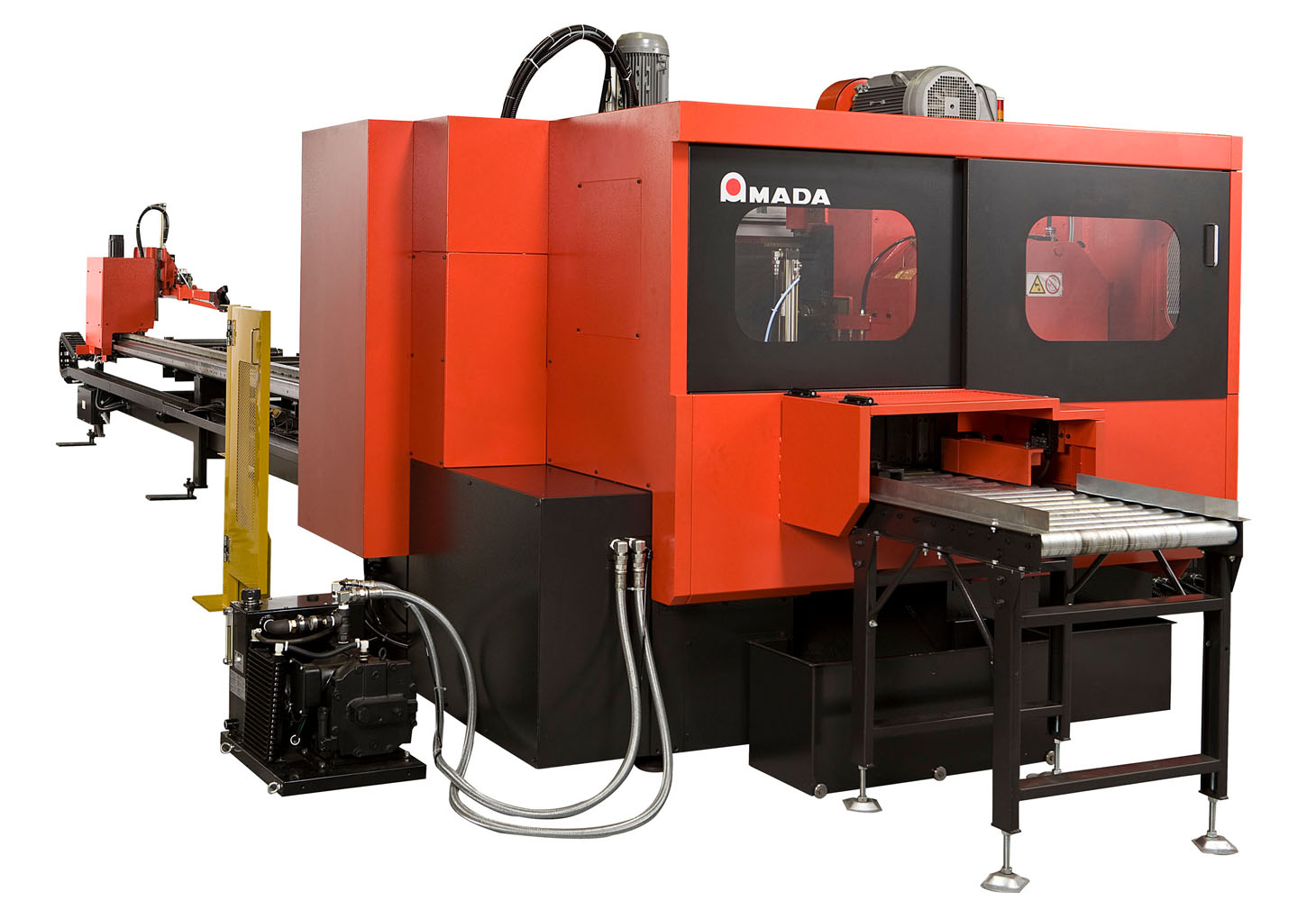

3BC Series
Drilling & Cutting Combination Machine for Small Structural Steel
Features
- ■ Features(1) : Flexibility to accommodate different types of structural steels
-
- This machine is capable of processing square steel pipes, angle steels, channel steels and H-shape steels. The vertical axis is designed to drill through-holes in square steel pipes.
- ■ Features(2) : High speed and high accuracy
-
- For high speed and high accuracy positioning, the sizing system uses a material feed carriage to grip the end of material.
- The carbide tipped circular saw blade cuts materials at high speed.
- ■ Features(3) : Better work environment
-
- Only the small amount of cutting oil is required by cooling mist, which reduces effects on downstream processes and increases environment-friendliness.
- ■ Features(4) : Easy input operation
-
- Input of correct data can be done easily by using graphic interactive input.
Specifications
| Model | 3BC-300 | 3BC-400 | ||
| Processing capacity (mm) (wall thickness of 3 mm or thicker) |
Square steel pipe | 50 - 150 | 50 - 200 | |
| Angle | 50 x 50 - 150 x 150 | 50 x 50 - 200 x 200 | ||
| Channel | 75 x 40 - 300 x 90 | 75 x 40 - 380 x 100 | ||
| H-shape steel | 100 x 50 - 300 x 150 | 100 x 50 - 400 x 200 | ||
| Material length (mm) | 1000 - 12500 | |||
| Drilling | Number of axes | 3 | ||
| Drill diameter (mm) | 9 - 28 | |||
| Cutting | Blade dimensions (outer diameter x inner diameter x blade thickness) (mm) |
Carbide | φ530 x φ50 x 3.8 | φ700 x φ80 x 3.8 (4.0) |
| High speed steel | φ550 x φ50 x 3.0 | - | ||
| Number of teeth | Carbide | 100, 120, 140 | 180 (140) | |
| High speed steel | 200 | - | ||
| Speed (min-1) | 200 - 650 | |||
| Motors (kW) | Carriage | 1.3 AC servo | 1.5 AC servo | |
| Drilling | 2.2 (1 each on vertical, right and left) | |||
| Cutting | 11 | 15 | ||
| Power requirement (kVA) | 33.4 | |||
| Machine dimensions (W x L x H) (mm) | 2953 x 2208 x 2116 (not including carriage) |
2935 x 1897 x 2216 (not including control device and carriage) |
||
| Mass of machine (kg) | Machine | 6000 | 6500 | |
| Carriage | 3200 | |||
Options
- Process data input software
- Ink jet marker
- Automatic loader
- Automatic unloader
- Roller table
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
