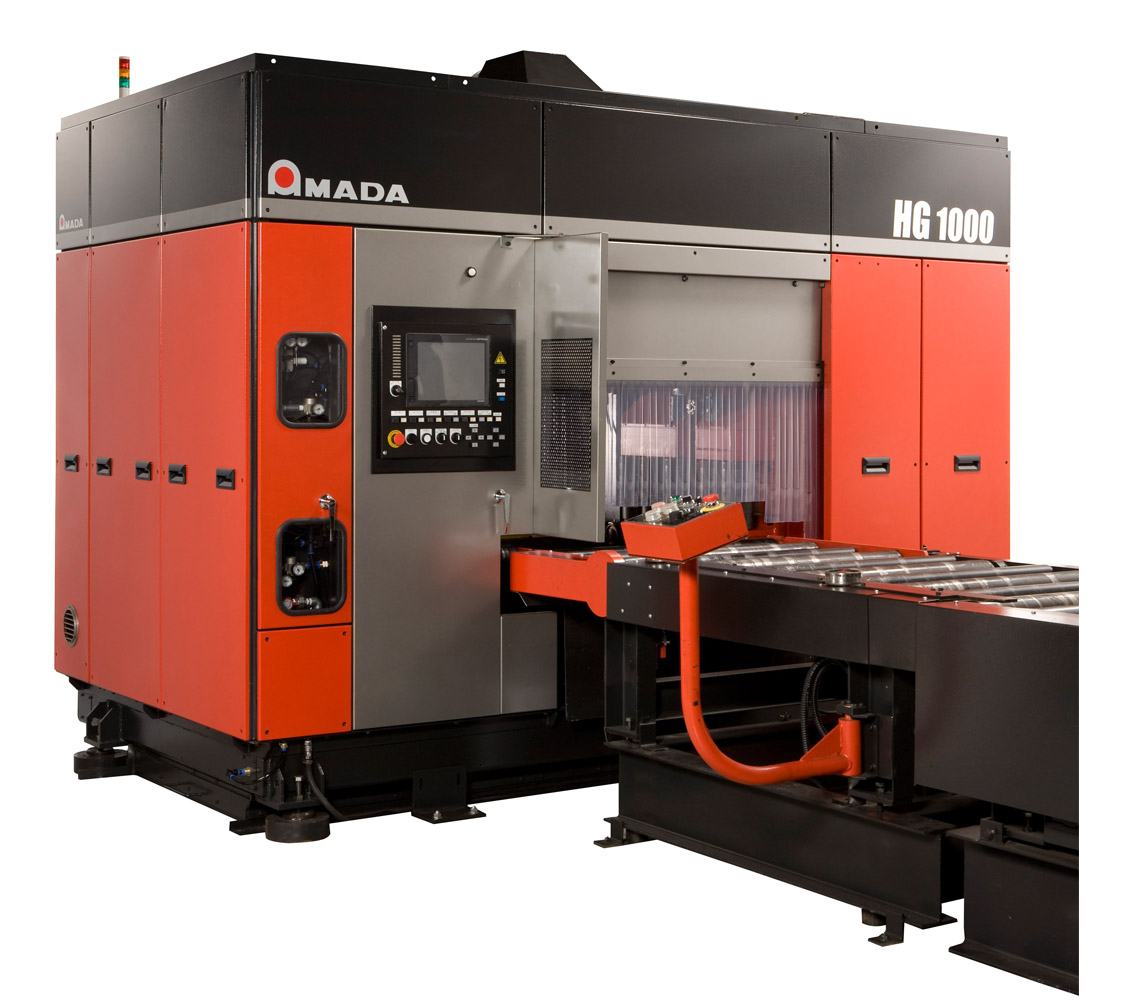

HG Series

AMADA MACHINERY Structural Steel Machines Surface Grinding & Deburring Machines

Deburring and surface grinding are mechanized in the drilling process. Reduced work load and a large dust collector improves work environment.

■ Features(1) : Better work environment

Deburring operators have to use a sanding machine to deburr materials in the conventional drilling process. Mechanized deburring significantly reduces work load such as turnover work.
The large dust collector is contributory to better environment.

■ Features(2) : Simultaneous removal of mill scale and rust

Mill scale can be removed from the contact surface during deburring. This reduces processing time required.

■ Features(3) : Higher productivity

Ten grinding wheels grind a flange and a web.
The unique mechanism of grinding wheels automatically tracks warp and warpage of H-shape steel in the grinding process.

Model			HG-1000	HG-1300
Processing capacity	H-shape steel size (mm)	Web width	194 - 1025	194 - 1325
		Flange height	99 - 500
		Web thickness	4 - 50
		Flange thickness	4 - 50
		Minimum material length	500
Grinding head	Number of heads		10
	Speed (min^-1)		3000 (50Hz), 3600 (60Hz)
	Grinding wheel		Segment ring wheel
	Clamping force (N)		200
Motor (kW)	Grinding head		2.2 x 10 heads
	Material feeder		0.75 x 2
	Dust collector		3.7
Machine dimensions (W x L x H) (mm)			3300 x 1880 x 3360 (not including dust collector)	3600 x 1880 x 3360 (not including dust collector)
Mass of machine (kg)			7500	8500

Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
