Horizontal Band Saw Machine

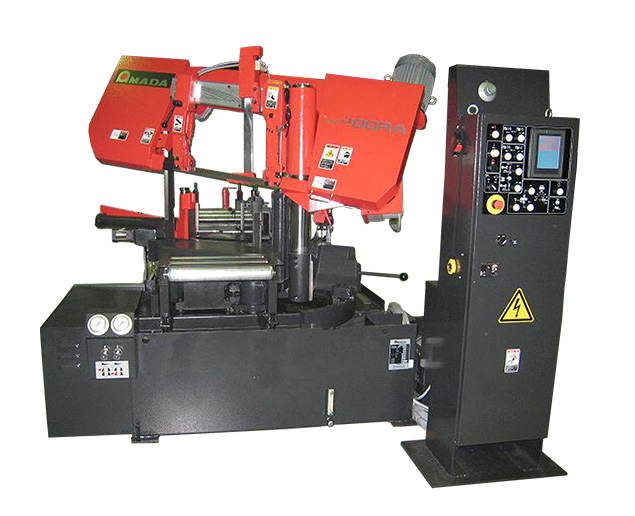

HK-400RA
Band Saw Machine for Small Structural Steel
Horizontal automatic type equipped with a miter mechanism
Features
- ■ Features(1) : High accuracy and high speed cutting
- The post type housing processing shortens a blade guide span.
- A blade tilted to a constant angle of 8° reduces a cutting length.
- A 34 mm wide blade can reduce deflection and allows for high accuracy and high speed cutting.
- ■ Features(2) : Automatic sizing and cutting at constant selective angle
- The angle cutting band saw machine is equipped with a feed vise mechanism. Special cutting such as a rhombic profile can be done automatically.
- ■ Features(3) : Multiitem cutting
- Cutting can be programmed from 10 to 9999.9 mm, 1 to 999 pieces and 99 stations. One material can be selectively cut to different product lengths and quantities.
Specifications
| Model | HK-400RA | |
| Cutting capacity (φ, width x height) (mm) |
0° | Rectangle 400 x 280 |
| □300 | ||
| φ320 | ||
| 45° | Rectangle 220 x 280 | |
| □220 | ||
| φ220 | ||
| 60° | Plant option | |
| Turning angle (°) | 45 backward | |
| Blade size (W x T x L) (mm) | 34 x 1.1 x 3885 | |
| Blade speed (m/min) | 30 - 100 | |
| Motor (kW) | Saw blade | 2.2 |
| Hydraulic pump | 0.75 | |
| Coolant pump | 0.06 | |
| Wire brush | 0.04 | |
| Power requirement (kVA) | 9 | |
| Stroke length (mm) | 400 | |
| Tank capacity (L) | Hydraulic | 40 |
| Coolant | 40 | |
| Table height (mm) | 800 | |
| Allowable load (Mass of work) (kg) | 400 | |
| Machine dimensions (W x L x H) (mm) | 2100 x 3151 x 1865 | |
| Mass of machine (kg) | 1800 | |
Options
- Roller table
- Semidry system
Service products
- APSIII (Automatic Positioning System)
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
