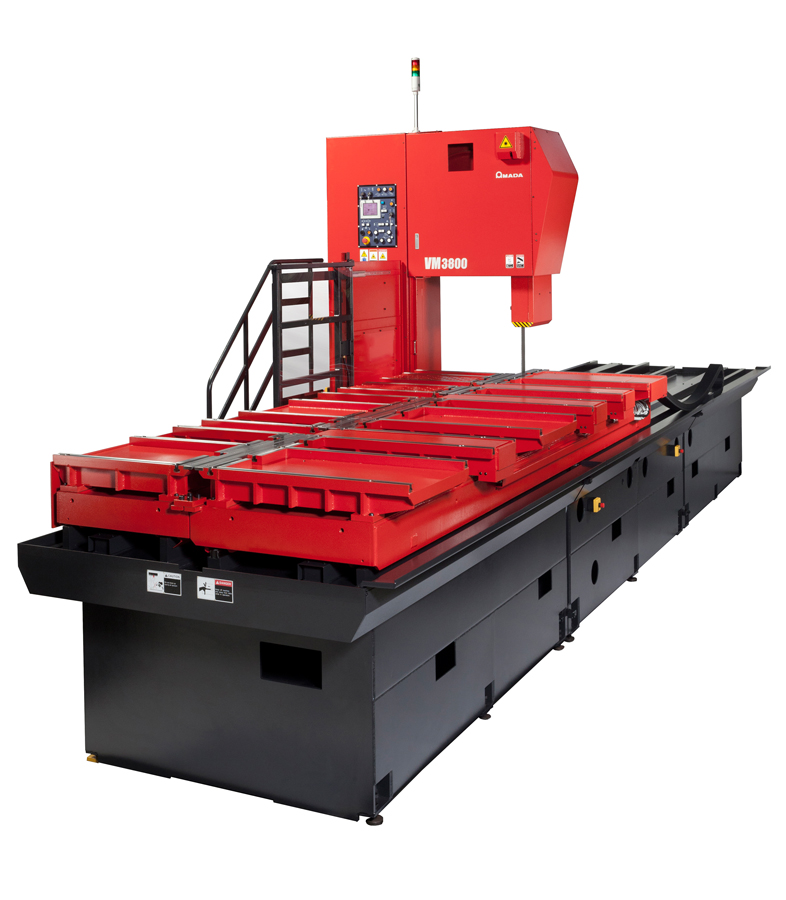

VM-3800
Vertical Band Saw Machine
Vertical block plate metal cutting band saw machine
Features
- ■ Features(1) : Selective cutting height
-
- A cutting height setting can be selected from either 600mm (standard) or 1000mm (optional) depending on the application and material size.
- ■ Features(2) : Larger blade size
-
- A larger blade size of 67mm x 1.6mm is used in contrast with conventional models.
- ■ Features(3) : Further larger model
-
- VM-6500 is available as a special model characterized by a table stroke of 6500mm and capability of cutting large materials.
- ■ Features(4) : Use of servo motor and linear guide
-
- An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.
- ■ Features(5) : Automatic adjustment of guide position
-
- Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.
- ■ Features(6) : Automatically adjustable wire brush
-
- Wire brush contact is automatically adjusted in proportion to wear of wire brush.
- A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.
- ■ Features(7) : Excellent operability
-
- The color display and touch panel facilitate operation.
- The embedded CNC-Lite function automatically sets optimum cutting conditions.
- ■ Features(8) : Permissible loading mass
-
- In response to a trend toward larger materials, the machine table offers 12000kg loading mass.
Specifications
| Model | VM-3800 | |
| Cutting capacity (Stroke x Throat x Height) (mm) | 3800 x 500 x 600 | |
| Blade size (W x T x L) (mm) | 67 x 1.6 x 6400 | |
| Blade speed (m/min) | 10 - 80(50Hz) | |
| 12 - 80(60Hz) | ||
| Motors (kW) | Saw blade | 7.5 |
| Hydraulic pump | 1.5 | |
| Coolant pump | 0.18 | |
| Wire brush | 0.09 | |
| Table feed | - | |
| Backgauge | - | |
| Power requirement (kVA) | 14 | |
| Table size (W x L) (mm) | 1788 x 4170 | |
| Stroke length (mm) | 3850 | |
| Tank capacity (L) | Hydraulic | 35 |
| Coolant | - | |
| Table height (mm) | 1410 | |
| Allowable load (Mass of work) (kg) | 12000 | |
| Machine dimensions (W x L x H) (mm) | 2624 x 8212 x 3175 | |
| Mass of machine (kg) | 10000 | |
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
