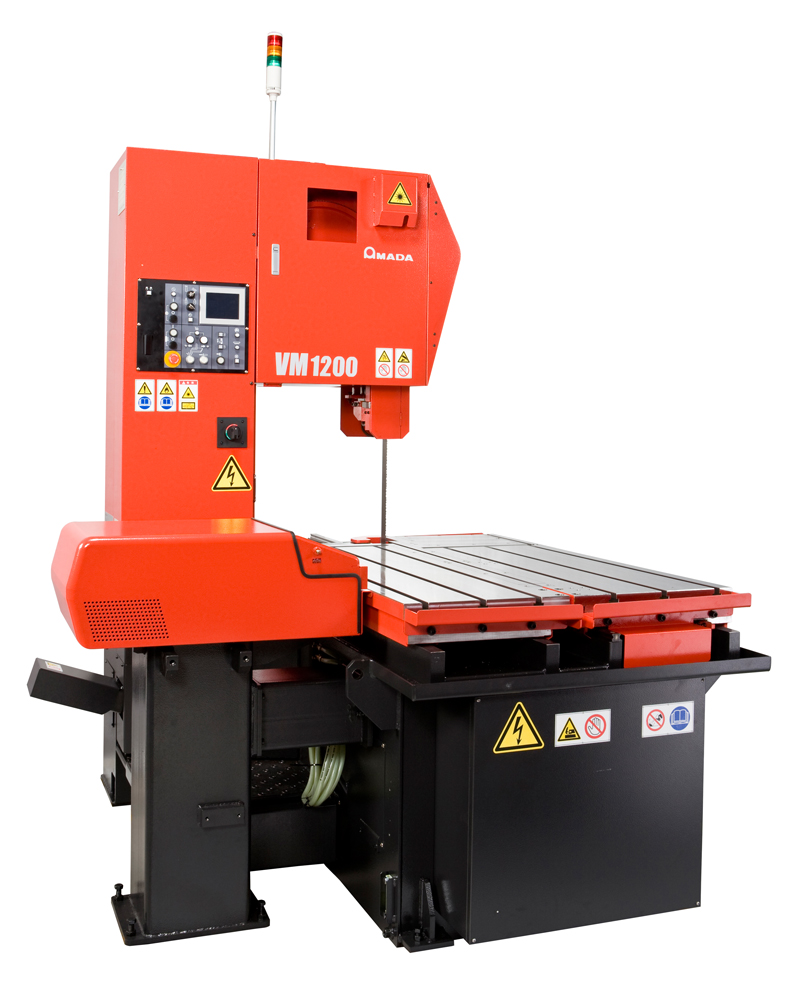

VM-1200/2500
Vertical Band Saw Machine
Vertical block plate metal cutting band saw machine
Features
- ■ Features(1) : Selective cutting height
-
- A cutting height setting can be selected from either 500mm (standard) or 800mm (optional) depending on the application and material size.
- ■ Features(2) : Selective blade size
-
- A blade can be selected from either a standard 41 x 1.3mm blade or an optional 54 x 1.3mm blade.
- ■ Features(3) : Use of servo motor and linear guide
-
- An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.
- ■ Features(4) : Automatic adjustment of guide position
-
- Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.
- ■ Features(5) : Automatically adjustable wire brush
-
- Wire brush contact is automatically adjusted in proportion to wear of wire brush.
- A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.
- ■ Features(6) : Excellent operability
-
- The color display and touch panel facilitate operation.
- The embedded CNC-Lite function automatically sets optimum cutting conditions.
- ■ Features(7) : Back gauge (optional)
-
- Using an optional back gauge can facilitate the alignment of marks.
- ■ Features(8) : Permissible loading mass
-
- In response to a trend toward larger materials, the machine table offers 2000kg loading mass (5000kg for VM-2500).
Specifications
| Model | VM-1200 | VM-2500 | |
| Cutting capacity (Stroke x Throat x Height) (mm) |
1219 x 508 x 508 | 2515 x 508 x 508 | |
| Blade size (W x T x L) (mm) | 41 x 1.3 x 4670 | ||
| Blade speed (m/min) | 10 - 90 | ||
| Motors (kW) | Saw blade | 5.5 | |
| Hydraulic pump | 0.75 | ||
| Coolant pump | 0.18 | ||
| Wire brush | 0.09 | ||
| Table feed | 0.5 | ||
| Backgauge | - | ||
| Power requirement (kVA) | 11 | ||
| Table size (W x L) (mm) | 1054 x 1640 | 1054 x 3095 | |
| Stroke length (mm) | 1250 | 2550 | |
| Tank capacity (L) | Hydraulic | 10 | |
| Coolant | - | ||
| Table height (mm) | 1005 | ||
| Allowable load (Mass of work) (kg) | 2000 | 5000 | |
| Machine dimensions (W x L x H) (mm) | 1682 x 3260 x 2506 | 1702 x 5863 x 2450 | |
| Mass of machine (kg) | 3300 | 5500 | |
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
