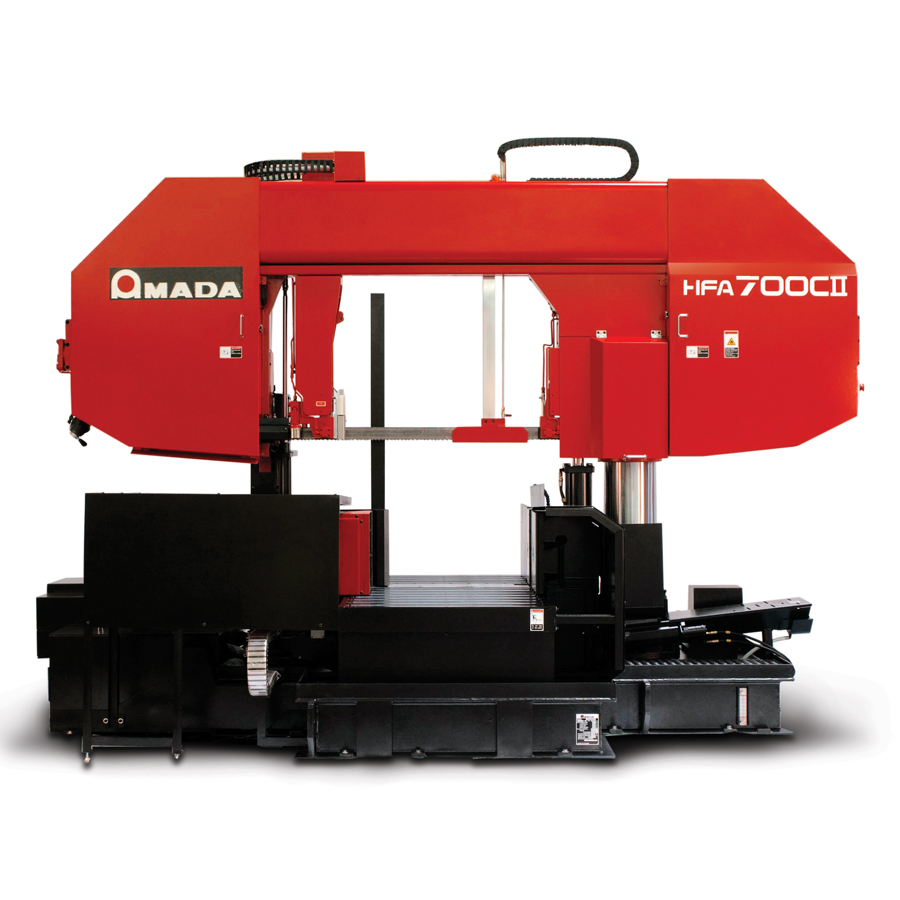

HFA-700CII
General-Purpose Band Saw Machine
Horizontal full automatic metal cutting band saw machine
Features
- ■ Features(1) : High quality machine capable of cutting large and difficult-to-cut materials
-
- Compact-size design with capability of cutting as large materials as 800 x 700mm.
- ■ Features(2) : Programmable cutting in line with automation of cutting process
-
- The embedded “F function” guarantees flexible automatic operation and requires only simple data entry through the numeric pad to automatically cut the predetermined number of workpieces at 99 stations.
- ■ Features(3) : Blade deviation monitor contributory to quality of workpieces
-
- The machine will automatically stop running if blade deviation exceeds a permissible limit setting.
Specifications
| Model | HFA-700CII | |
| Cutting capacity (mm) | Round (Dia) | φ290 - 700 |
| Rectangle (W x H) | 290 - 800 x 700 | |
| Blade size (W x T x L) (mm) | 67 x 1.6 x 8300 | |
| Blade speed (m/min) | 15 - 120 | |
| Motors (kW) | Saw blade | 11 |
| Hydraulic pump | 3.7 | |
| Coolant pump | 0.36 | |
| Wire brush | 0.09 | |
| Power requirement (kVA) | 26 | |
| Stroke length (mm) | 500 (Front vise) | |
| Tank capacity (L) | Hydraulic | 115 |
| Coolant | 100 | |
| Table height (mm) | 698 | |
| Allowable load (Mass of work) (kg) | 8000 | |
| Machine dimensions (W x L x H) (mm) | 3999 x 2133 x 2348 | |
| Mass of machine (kg) | 7000 | |
Options
- Roller table
- Vise pressure control valve
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
