Semi-Automatic General-Purpose Band Saw Machines

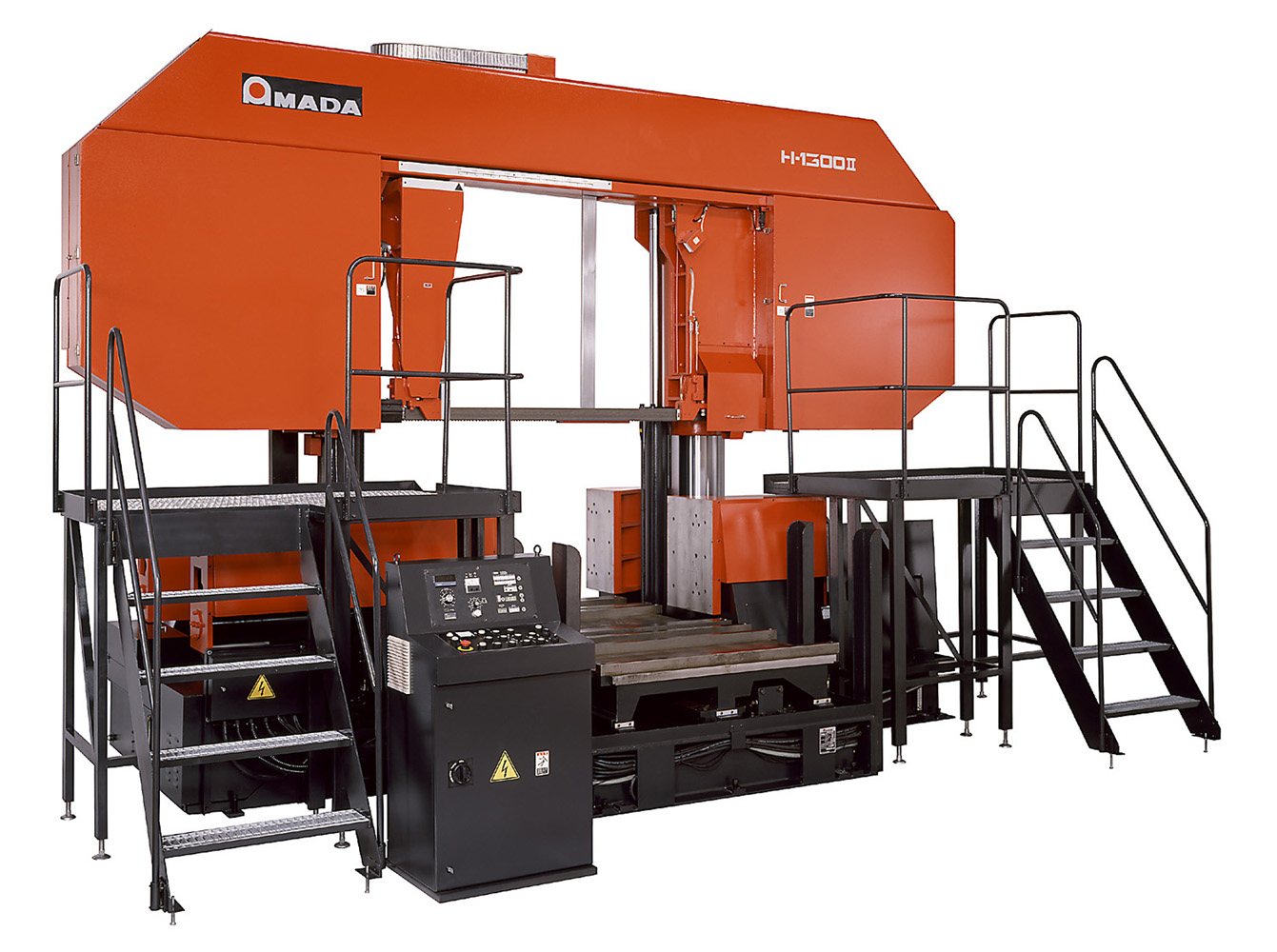

H-1300II/1600II/2116II
General-Purpose Band Saw Machine
Horizontal semi-automatic metal cutting band saw machine
Features
- ■ Features(1) : Extra large metal cutting machine
-
- Extra large band saw models H-1300II, H-1600II and H-2116II are capable of cutting φ1300 or 1300 square, φ1600 or 1600 square and φ1600 or 2100 wide x 1600 high respectively.
- ■ Features(2) : Cutting performance covering all types of large materials
-
- A bi-metal extra wide blade (SGLB or MAGNUM) is used, which easily cuts large materials and difficult-to-cut materials. Variable blade speed allows a user to select desired blade speed as required for materials ranging from regular steel materials to difficult-to-cut materials.
- ■ Features(3) : High rigidity construction
-
- A clamping force of the powerful hydraulic wide vise can cover round, square and irregularly-shaped materials. The maximum loading masses of the models are 24000kg, 40000kg and 40000kg respectively with a large table.
- ■ Features(4) : Cutting speed monitoring and cutting depth setting unit
-
- Cutting speed can be quickly observed through the digital counter.
- ■ Features(5) : Feed table used to feed materials
-
- Materials are fed by the 180mm stroke table.
Specifications
| Model | H-1300II | H-1600II | H-2116II | |
| Cutting capacity (mm) |
Round (Dia) | φ1300 | φ600 - 1600 | φ600 - 1600 |
| Rectangle (W x H) | 1300 x 1300 | 600 - 1600 x 1600 | 600 - 2100 x 1600 | |
| Blade size (W x T x L) (mm) | 80 x 1.6 x 12300 | 80 x 1.6 x 15500 |
80 x 1.6 x 16500 |
|
| Blade speed (m/min) | 15 - 75 | 12 - 60 | ||
| Motors (kW) | Saw blade | 15 | ||
| Hydraulic pump | 3.7 | 5.5 | ||
| Coolant pump | 0.2 | 0.37 | ||
| Wire brush | - | 0.09 | ||
| Power requirement (kVA) | 28 | 35 | 32 | |
| Stroke length (mm) | 1800(Table) | |||
| Tank capacity (L) | Hydraulic | - | 250 | |
| Coolant | - | 350 | ||
| Table height (mm) | 700 | 810 | 825 | |
| Allowable load (Mass of work) (kg) | 24000 | 40000 | ||
| Machine dimensions (W x L x H) (mm) | 5597 x 4300 x 3479 | 7407 x 4895 x 4314 | 7921 x 4917 x 4320 | |
| Mass of machine (kg) | 18500 | 30000 | ||
Service products
- Cutting rate meter (H-1300II)
Specifications, appearance and equipment are subject to change without notice by reason of improvement.
This products is for Japan domestic market.
