AMADA MACHINERY
General Fabrication Machines
Shearing Machines

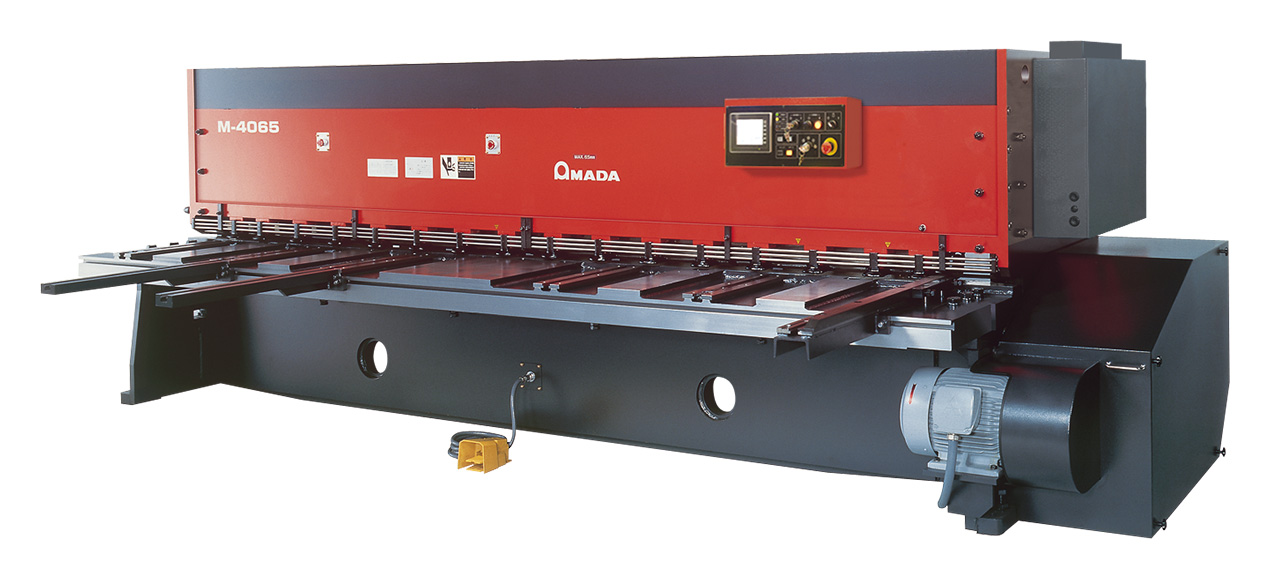

M Series
AMADA's long-selling mechanical shearing machine
A frame with a steel plate assembly structure that insures high stability during processing. The drive unit is installed at the bottom of the machine, and various devices are also available.
Features
- ■ Feature (1) High rigidity design
- Steel plate assembly structure that insures high stability during processing.
- Underdrive system installed at the bottom of the machine
- ■ Feature (2) Electromagnetic friction type clutch and brake supporting reduction of noise and vibration
- Reduced impact during cutting and low operating noise level
- ■ Feature (3) Standard equipment for easy high-accuracy and high-efficiency processing
- Automatic cutting function
- Light beam
- Blade clearance adjustment with jack bolts
- Independent hydraulic holddown
Specifications
|
Maximum cutting length |
Maximum sheet thickness |
Rake angle |
Stroke |
Back gauge movement range |
|
|---|---|---|---|---|---|
|
M-4065 |
4055 |
Tensile strength: 450N/mm2 0.6 to 6.5 |
１°28' |
52 |
10～1000 |
|
M-6045III |
6130 |
Tensile strength: 450N/mm2 0.6 to 4.5 |
0°50' |
36 |
10～1000 |
*For Japan domestic market.
