AMADA Bending Machines Press Brakes Bending Tooling

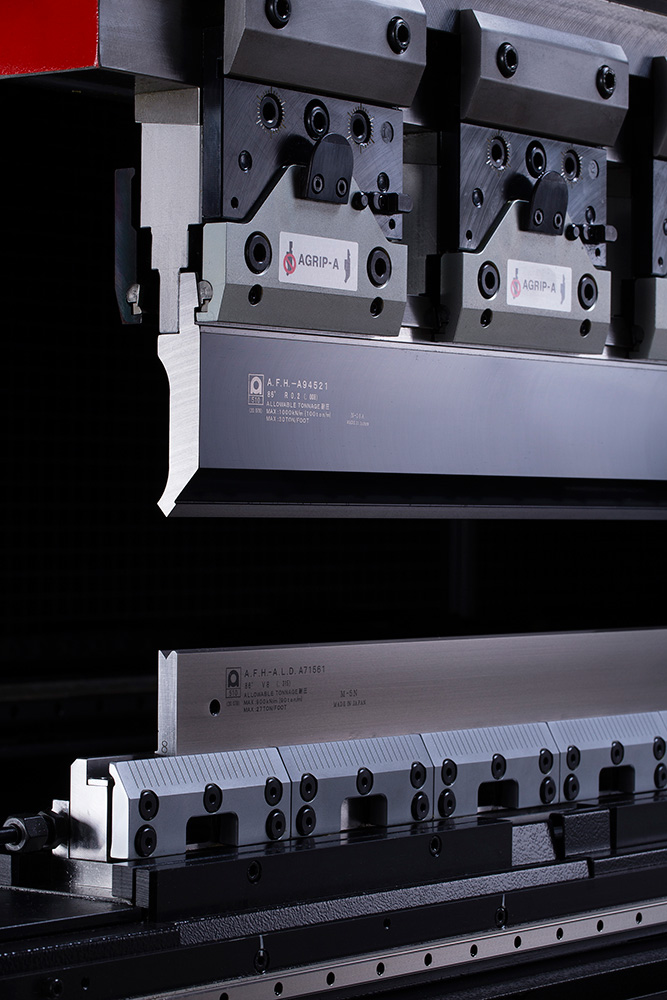

Hydraulic 1V die holder

Tool is clamped and unclamped with a single switch using a hydraulic mechanism. In addition, the clamping plate slit of the new mechanism ensures that the split type is securely fixed.

Specifications

Die fix method

Tooling
(die)

Holder length
(mm）

Holder height
(mm)

Clamping plate drive method
with hydraulic pressure

AFH 1V die,
Sectionalized 1V die (clamping width 14mm)

1250～4000
(connect two for table
lengths of 2.5m or more)

H=51.5
(from table top)

Click here for details

*This product is for the Japanese market.
