AMADA Blanking Machines Punch and Laser Combination Machine Punching Tooling

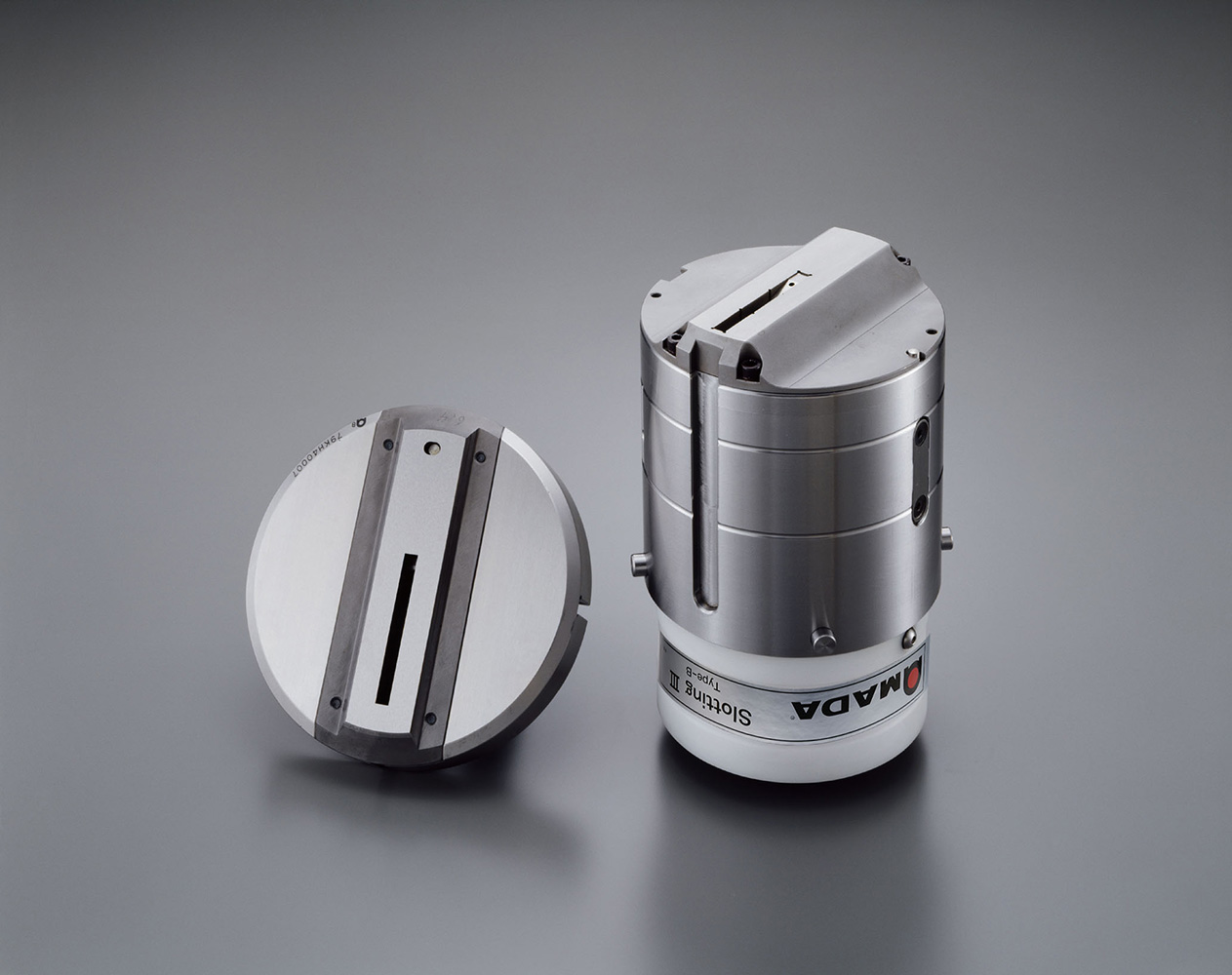

Slotting tools III

Features

Joint mark-less processing is possible until the repositioning of the clamps.

Specifications

Tooling type

Station size

Cut width
(mm)

Maximum sheet thickness
/ standard spec.
(mm)

Maximum sheet thickness
/ APH spec.
(mm)

Maximum feed pitch
(mm)

Slotting tool

Dst 3 1/2"

6～10

SPCC:2.3
AL:3.0
SUS:1.5

SPCC:2.3
AL:3.0
SUS:2.0

1.6ｔ＜ｔ→20
ｔ≦1.6ｔ→25

Est 4 1/2"

1.6ｔ＜ｔ→30
ｔ≦1.6ｔ→35

Click here for details

*For Japan domestic market.
